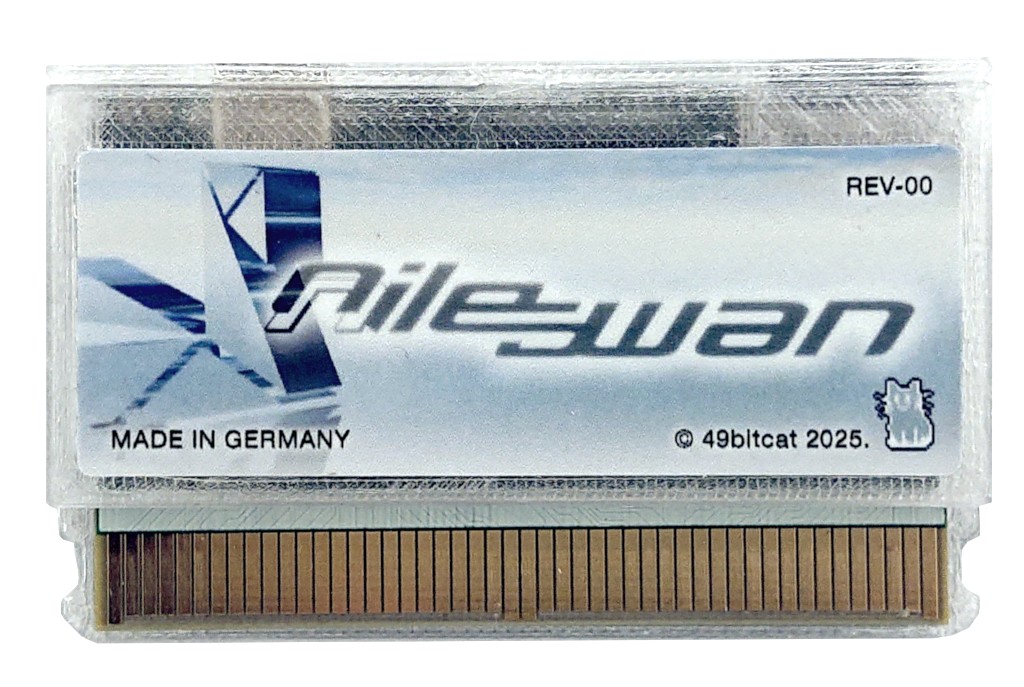

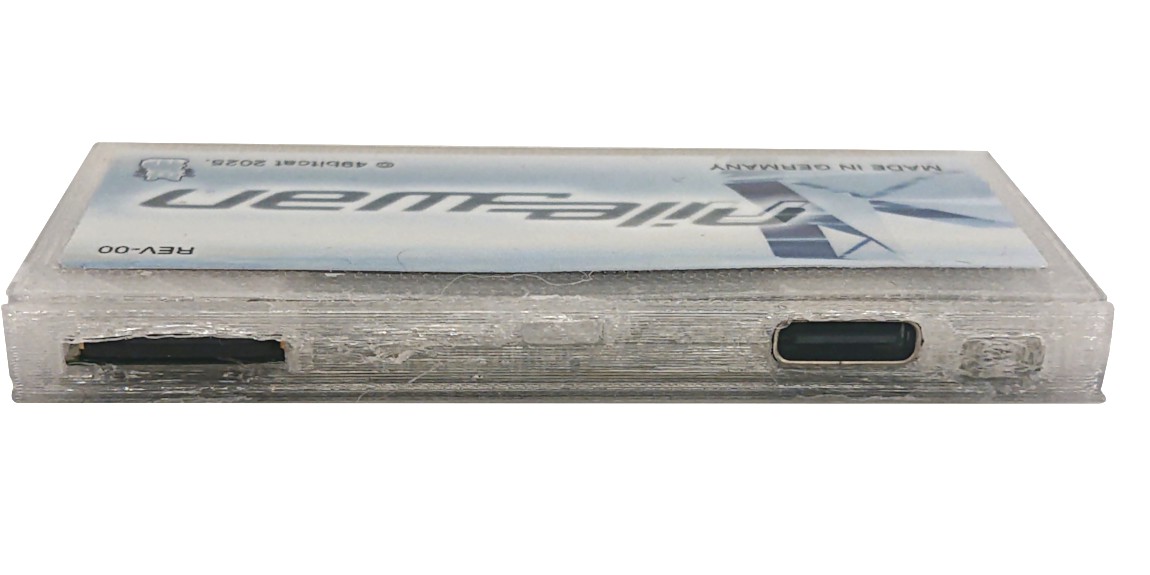

The nileswan is a fully featured flash cartridge compatible with the WS/WSC family of consoles, as well as the PCv2. It has very wide compability with existing software while also enhancing the platform in new ways suitable for modern homebrew development.
Features
General features
- Loading programs from a FAT16/FAT32 storage card (speeds up to 900 KB/s)
- Support for running WS programs up to 16 MiB in size
- Emulation of the following cartridge hardware:
- SRAM saves (32 / 64 / 128 / 256 / 512 KiB)
- EEPROM saves (128 B / 1 KiB / 2 KiB)
- RTC (Real-Time Clock)
- NOR Flash (512 KiB)
- Battery backup for save data
- Save data is transferred to card every system start to minimize data loss
- Compatible with WS, WSC, SC and PCv2 systems
- Firmware update support, with recovery options for failed updates
- Recovery button for starting WSC/SC consoles with corrupted internal EEPROM data
- Optimized power consumption
- Hard gold cartridge contacts for improved longevity
- 3-axis accelerometer for homebrew
- Open source, upgradeable FPGA and MCU firmware
- Cartridge label designed by alfaxysm
Developer features
- Support for runtime FPGA core switching
- USB port for quickly testing software (up to 100 KB/s) and debug output
- Documentation for device programming and protocols
Availability
Batch 1 (12th February 2026) has sold out. Thank you for your support!
Batch 2 (10th April 2026) has sold out. Thank you for your support!
Details concerning Batch 3 will be provided at a later date.
User information
To get started, check out the quick start guide. If you run into any issues, try the troubleshooting guide.
Developer information
For more information on how to develop for the nileswan and take advantage of its features, see:
- nileswan developer guide - hardware specifications and programming notes
- libnile, its documentation and examples - convenient C interface to the nileswan’s dedicated hardware.
Conformity
The nileswan conforms to applicable regulations within the European Union: declaration of conformity.
